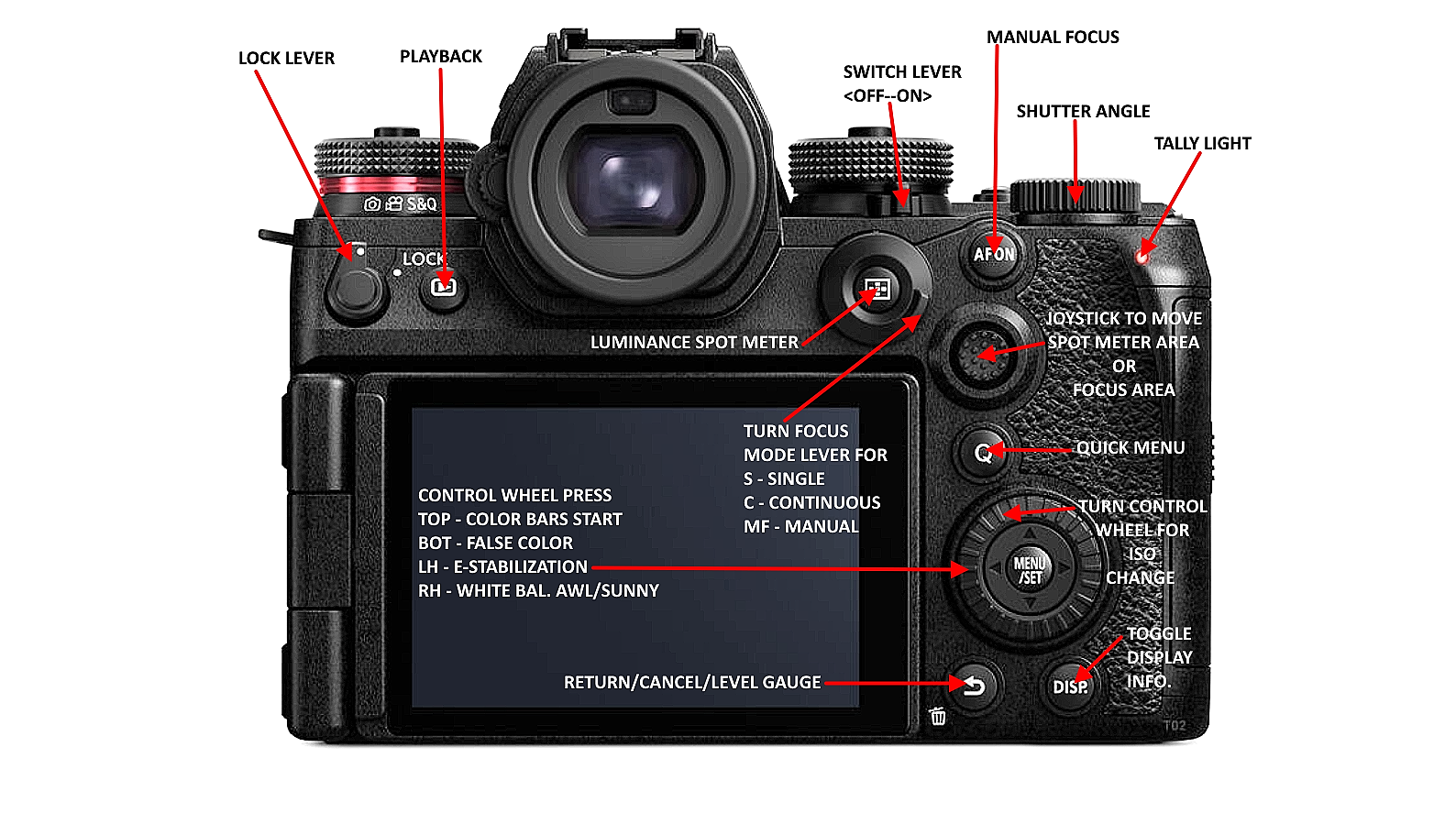

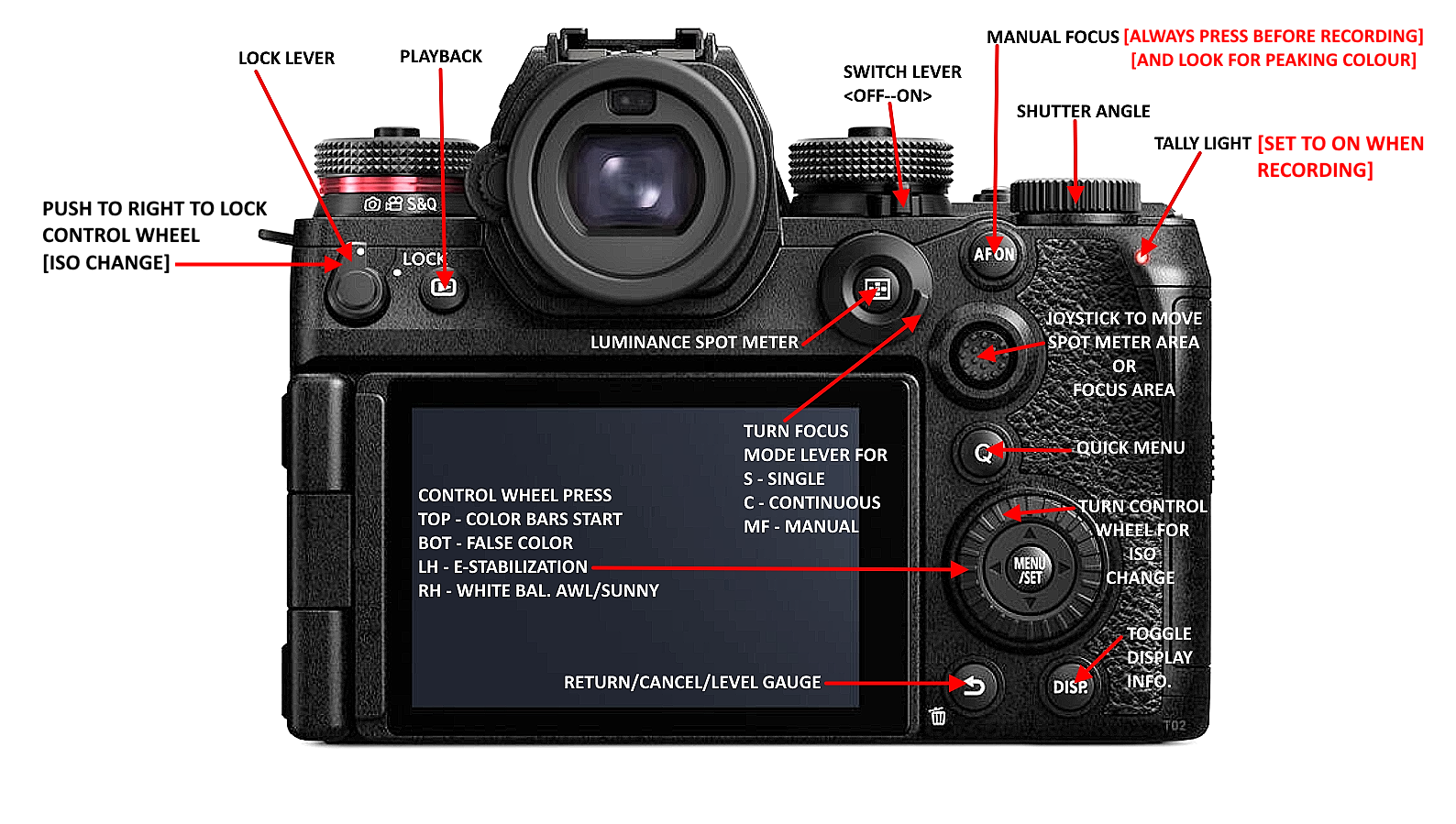

Back view of Lumix S1Rii camera
Button & dial settings
for video recording
▼

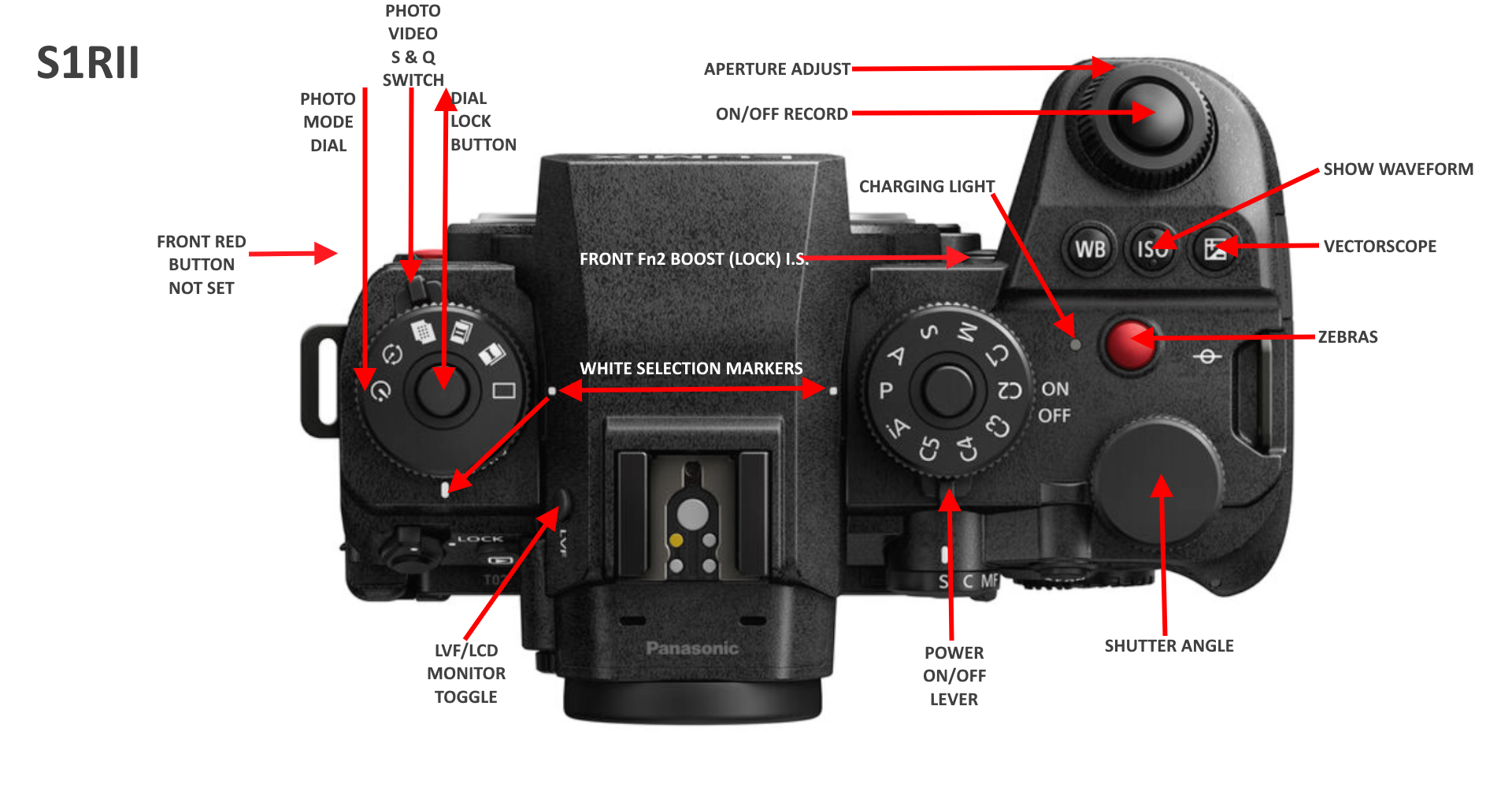

Top view of LUMIX S1Rii camera
Button & dial settings
for video recording
▼

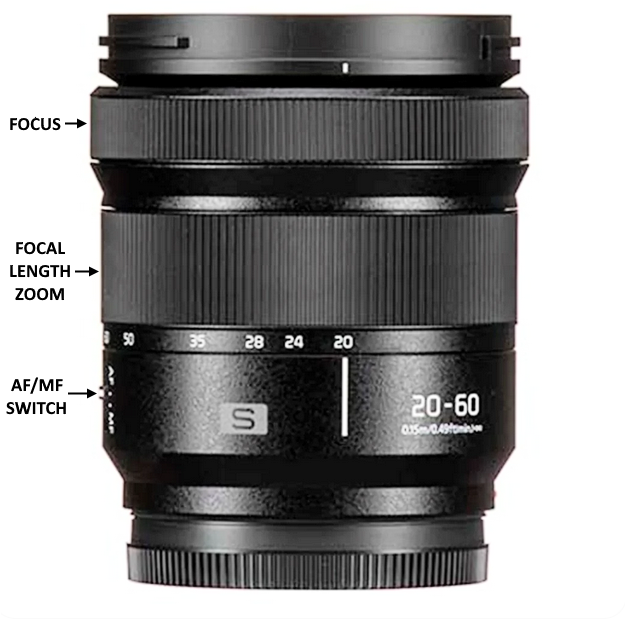

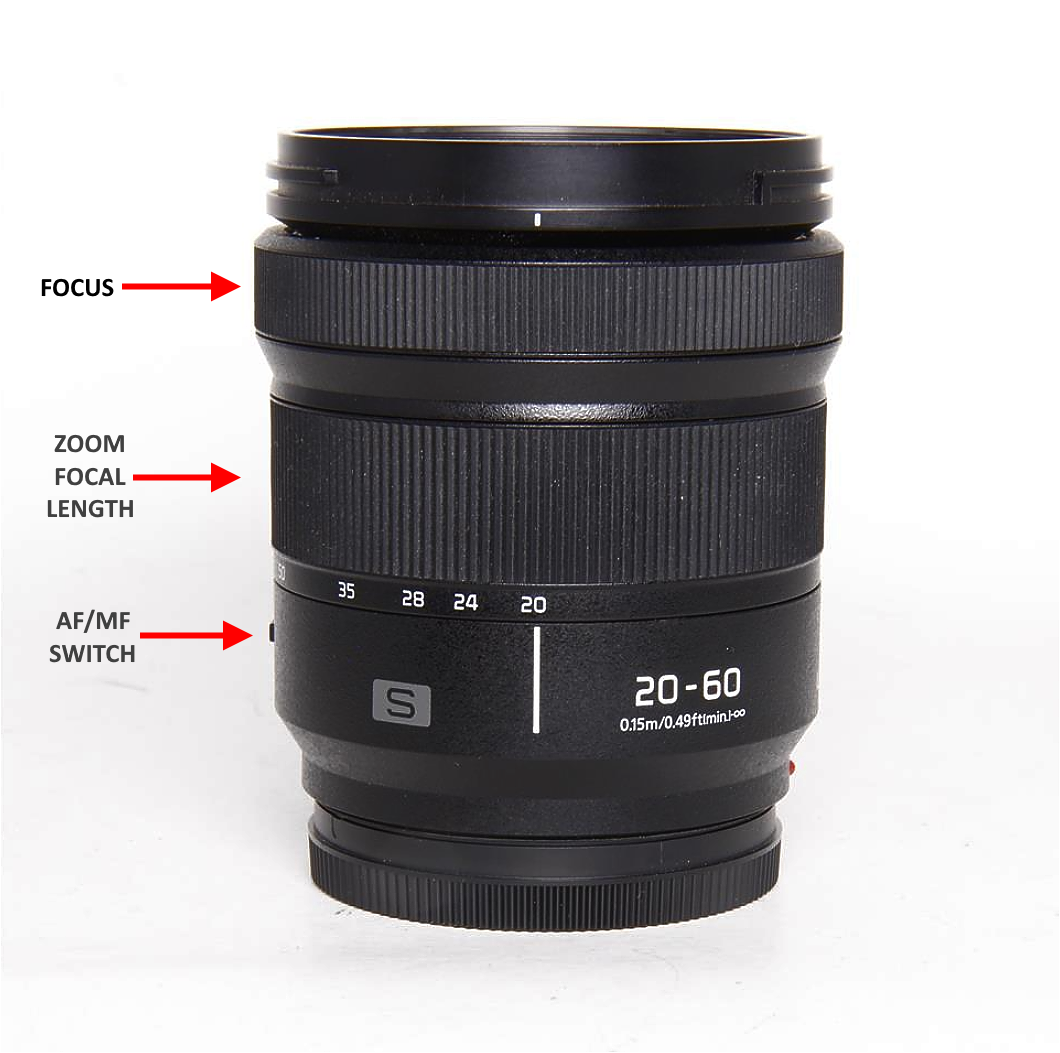

MAIN CAMERA LENS PANASONIC S 20-60mm

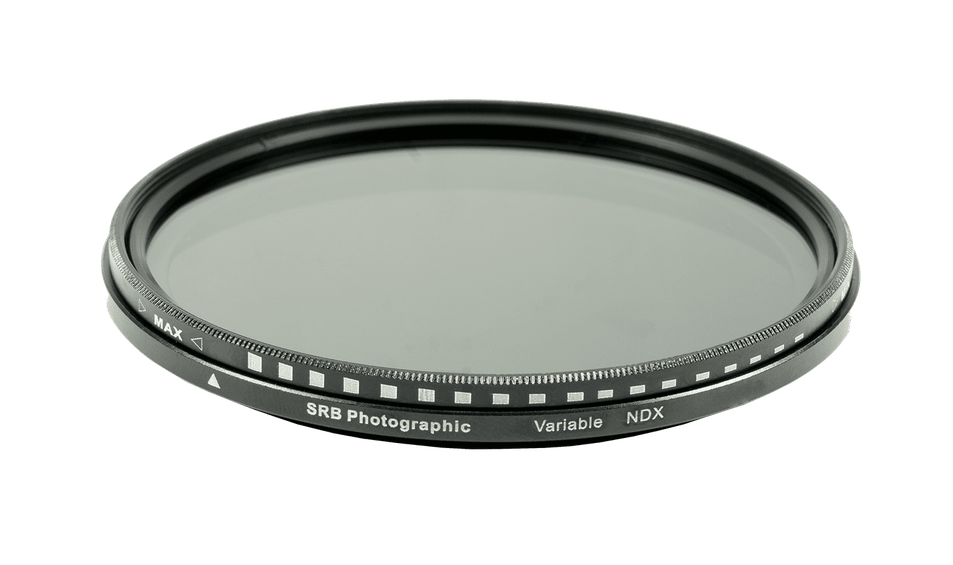

SRB VARI NDX FILTER

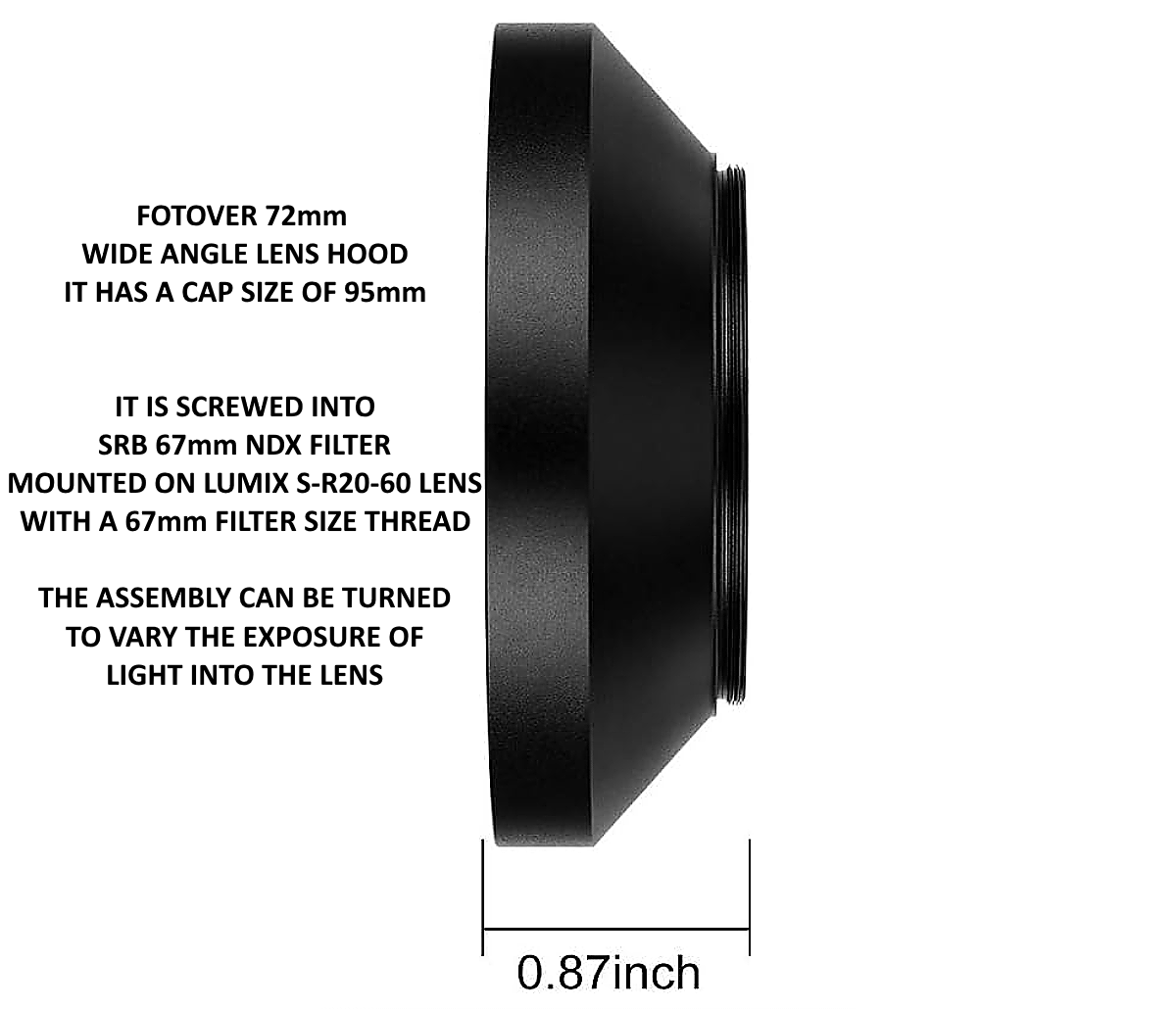

FOTOVER LENS HOOD
▼

SOUND RECORDING
MOUNT TO HOT SHOE

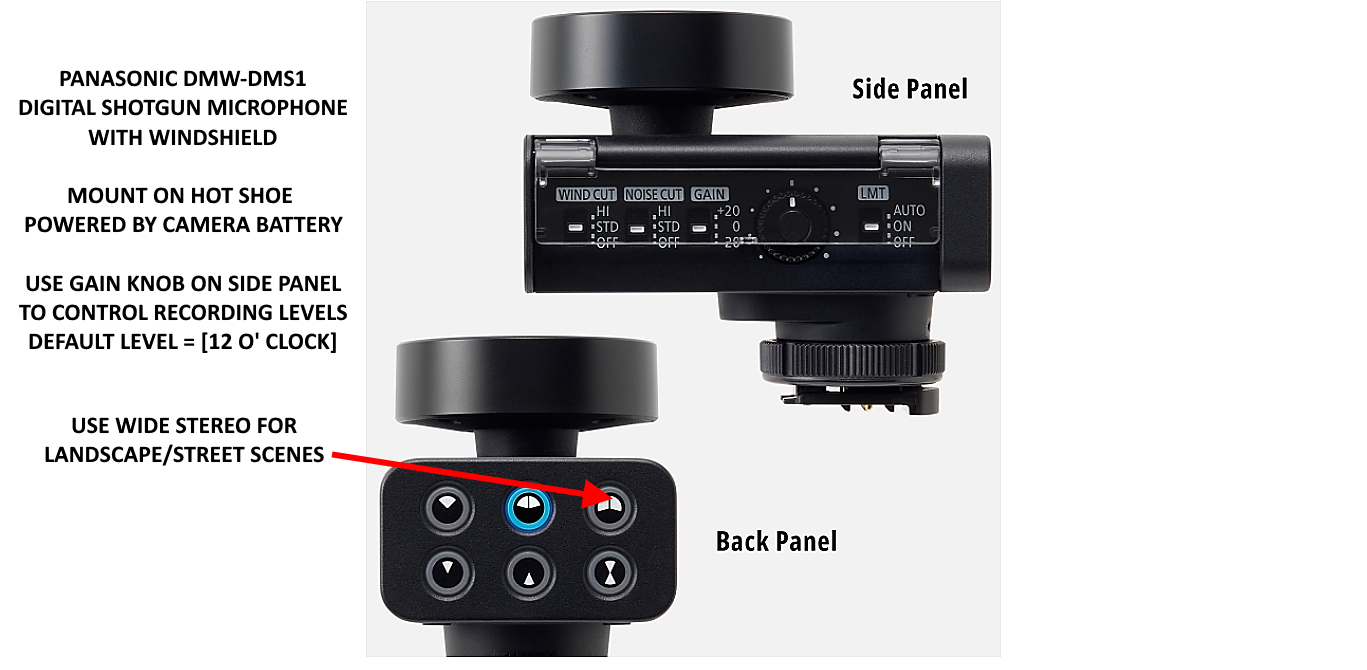

PANASONIC DMW-DMS1 MICROPHONE
USE WITH WINDSHIELD OUTSIDE
▼

MONITOR PICTURE & SOUND

LOOK THROUGH VIEWFINDER
PRESS AF-ON BUTTON TO MAX OUT FOCUS PEAKING COLOUR LEVELS.

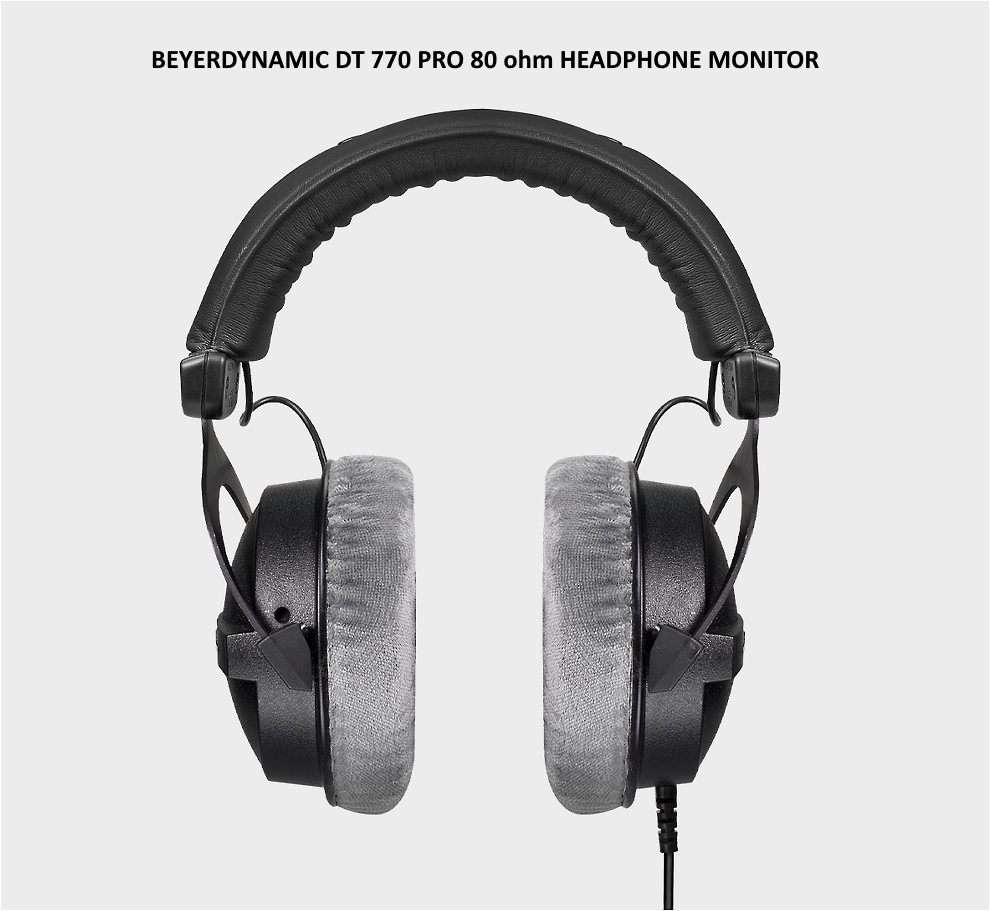

LISTEN THROUGH LOW IMPEDANCE HEADPHONES AND CHECK AUDIO LEVELS ON METERS.

IF INTERNAL BATTERY IS FITTED, THE USB SKT CAN BE USED TO POWER CAMERA CONTINUOUSLY FROM A MAINS USB CHARGER & LEAD WHEN INDOORS.
▼

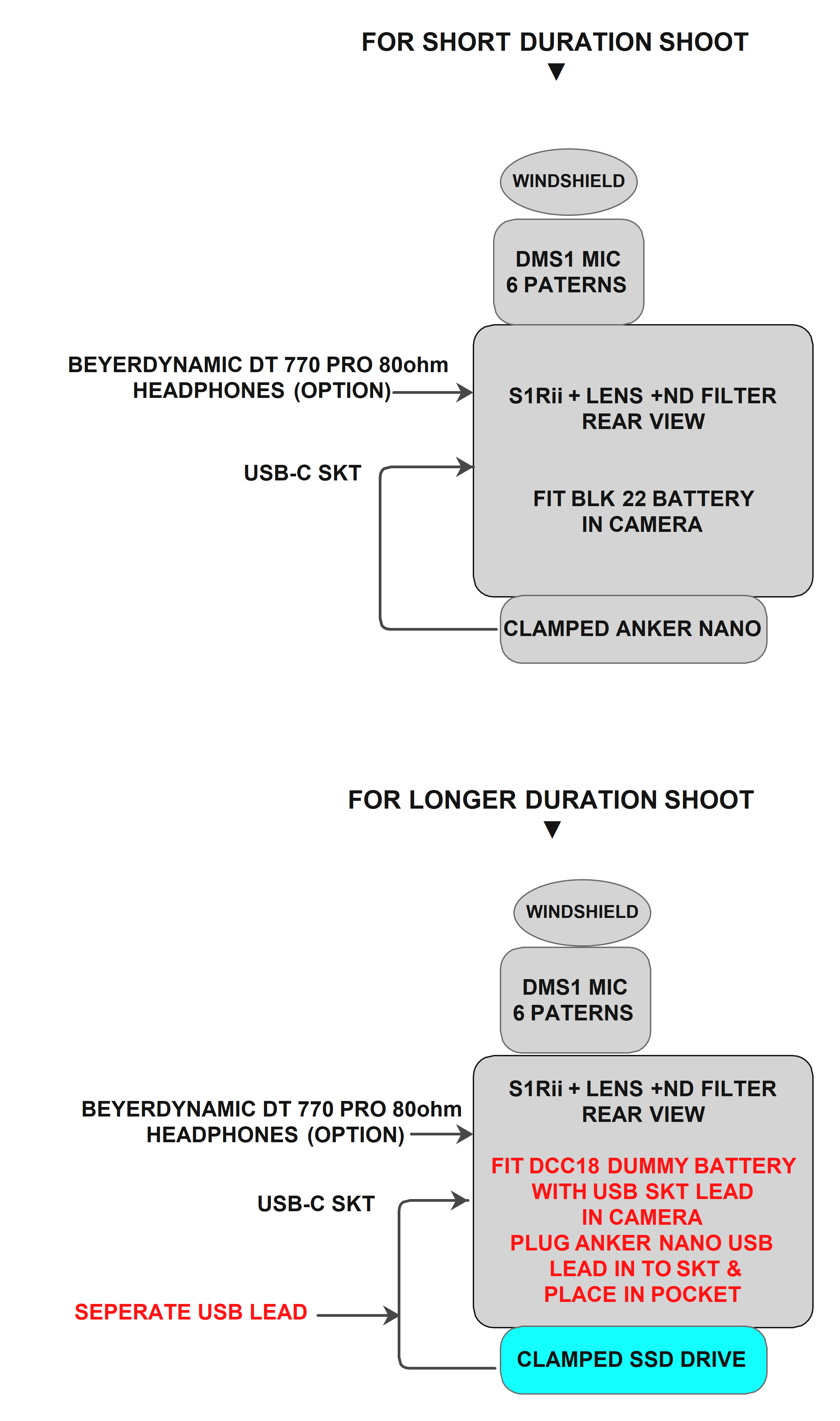

CAMERA SUPPORT
▼

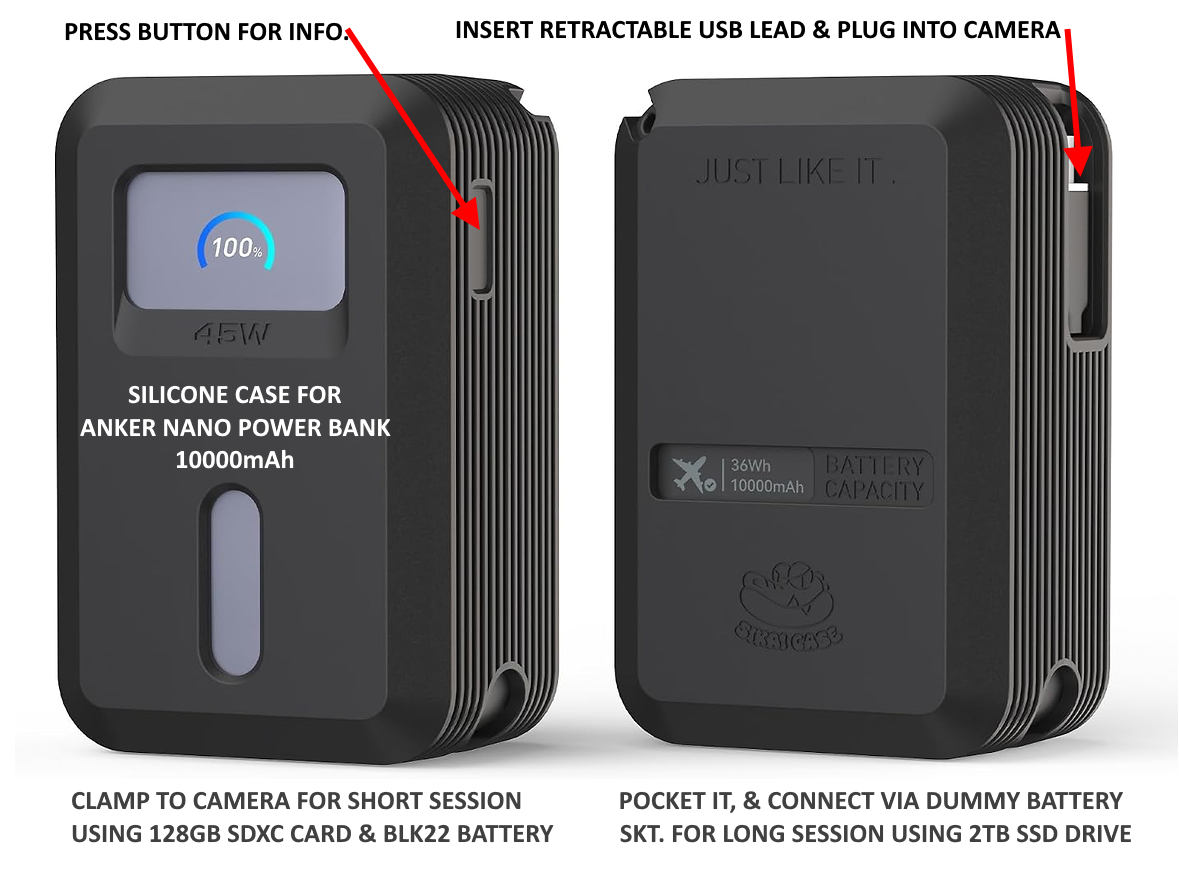

POWER BANK METHOD

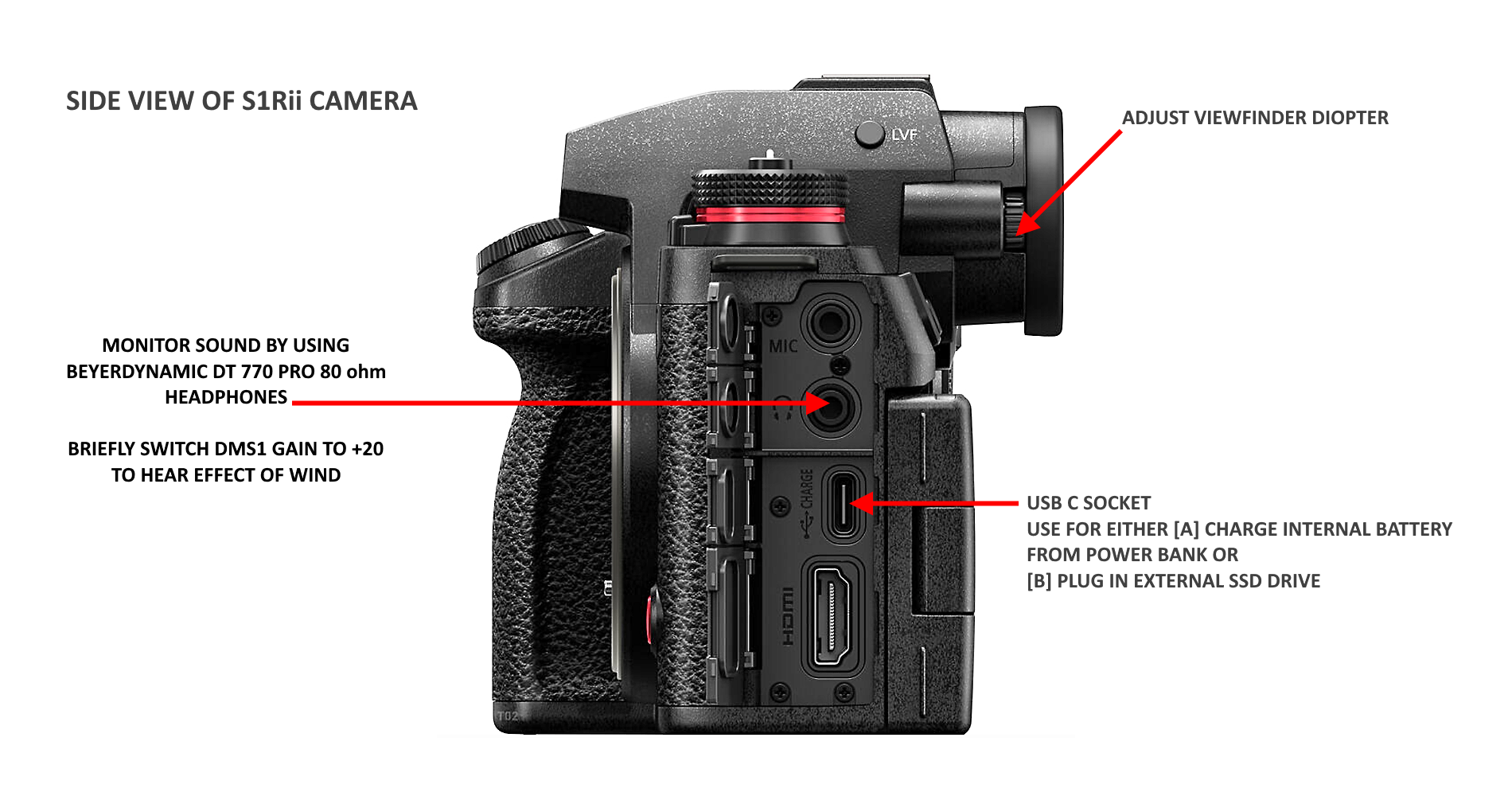

& USE OF USB SOCKET
▼

▲
S1Rii GENERAL USAGE

USE CUSTOM C1
SETTINGS ARE: CINEA2 8K 16:9 7680 x 4320 HEVC 420 10L LPCM 25p 300Mbps FULL FRAME

DURATION FOR 128GB SDXC CARD APPROX. 45mins (INTERVAL SHOOTING TOTAL)

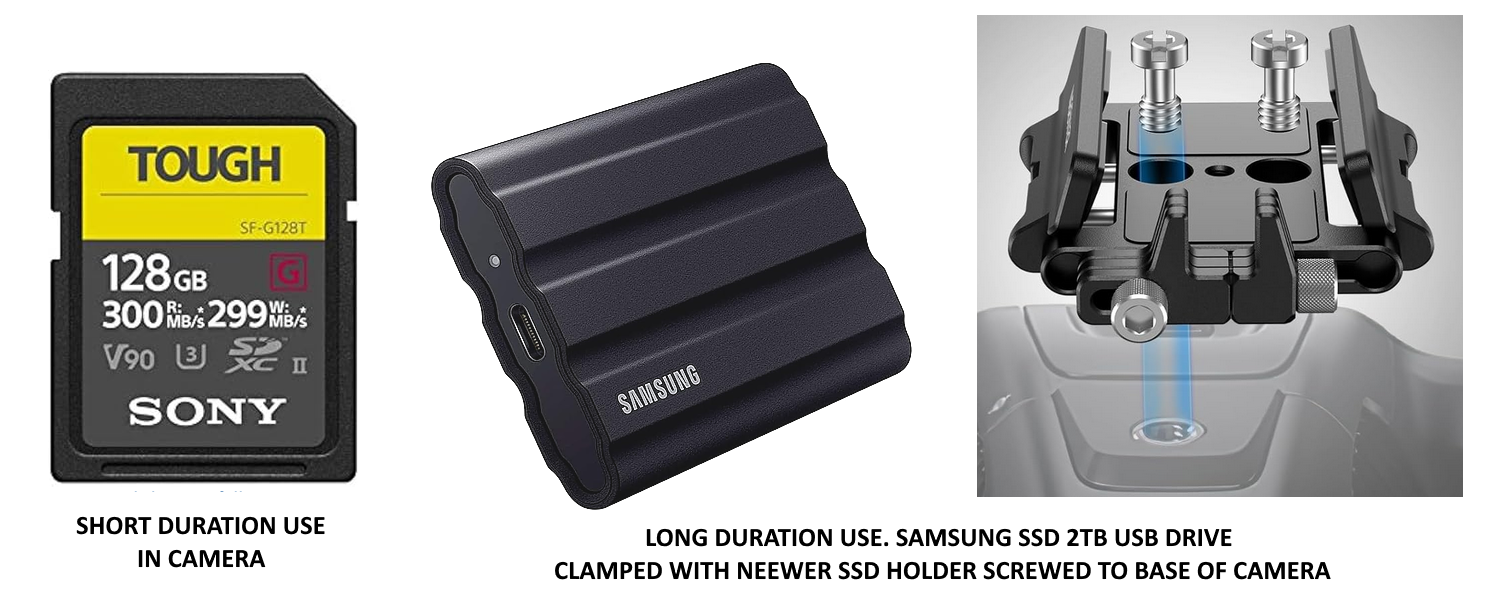

DURATION FOR 2TB SSD DRIVE APPROX. 14hrs. (INTERVAL SHOOTING TOTAL)

LATER, THE FILES WILL CONVERTED TO 4K 16:9 PRORES HQ USING "KYNO"
AND EDITED AND GRADED USING "DAVINCI RESOLVE STUDIO"

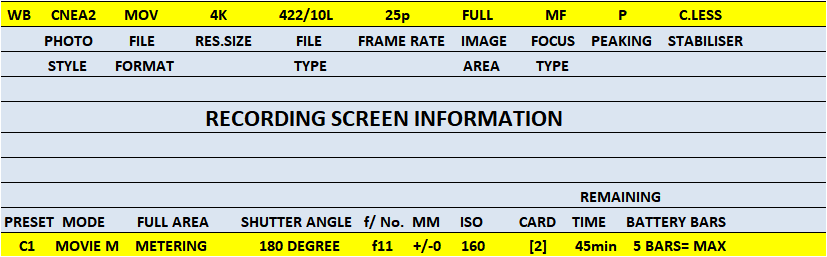

RECORDING SCREEN IN CAMERA

YELLOW STRIPS REPRESENT TOP & BOTTOM SETS OF INFORMATION AVAILABLE IN VIEWFINDER

BATTERY BARS SHOULD ALWAYS BE AT 5 FOR SHORT DURATION METHOD
TO CHECK FOR LONG DURATION SHOOTING LOOK AT "ANKER NANO" SCREEN

IGNORE TTL METERING & USE ZEBRAS OR WAVEFORM TO CHECK EXPOSURE

▼

KIT (LONG DURATION)	KIT (SHORT DURATION)
1.CLEANING KIT	1.CLEANING KIT
2.LUMIX S1Rii CAMERA	2.LUMIX S1Rii CAMERA
3.PANASONIC S 20-60mm LENS	3.PANASONIC S 20-60mm LENS

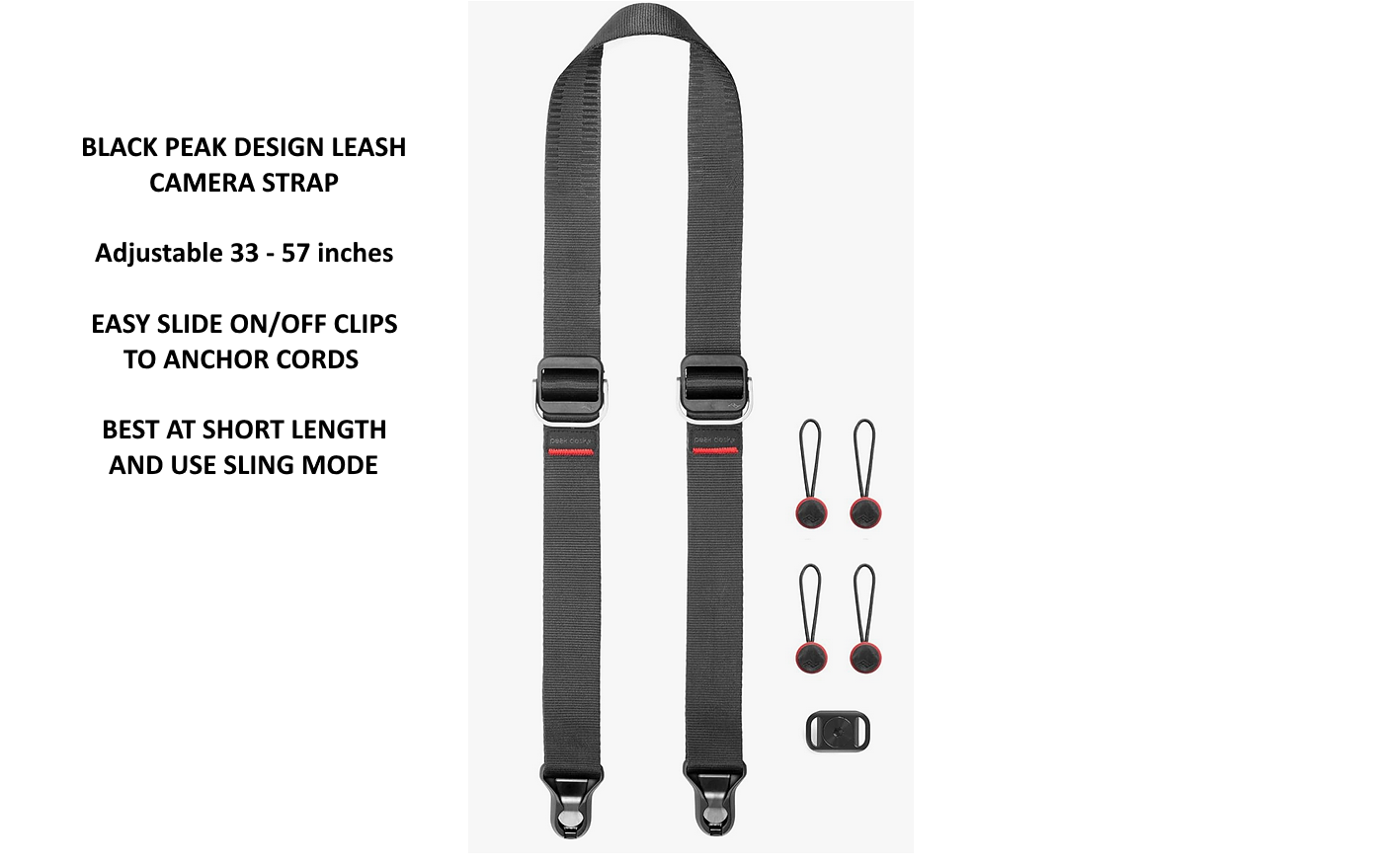

4.PEAK DESIGN CAMERA STRAP & ANCHORS	4.PEAK DESIGN CAMERA STRAP & ANCHORS
5.LUMIX MICROPHONE DMW-DMS1 & WINDSHIELD	5.LUMIX MICROPHONE DMW-DMS1 & WINDSHIELD
6.SRB 67mm NDX VARI-FILTER	6.SRB 67mm NDX VARI-FILTER
7.FOTOVER 72mm SUN HOOD & CAP	7.FOTOVER 72mm SUN HOOD & CAP
8.ANKER NANO 10K POWER BANK WITH SILCONE COVER x 2 (FULLY CHARGED)	8.ANKER NANO 10K POWER BANK WITH SILCONE COVER x 2 (FULLY CHARGED)
9.LENS CAP	9.LENS CAP
10.HOT SHOE CAP	10.HOT SHOE CAP

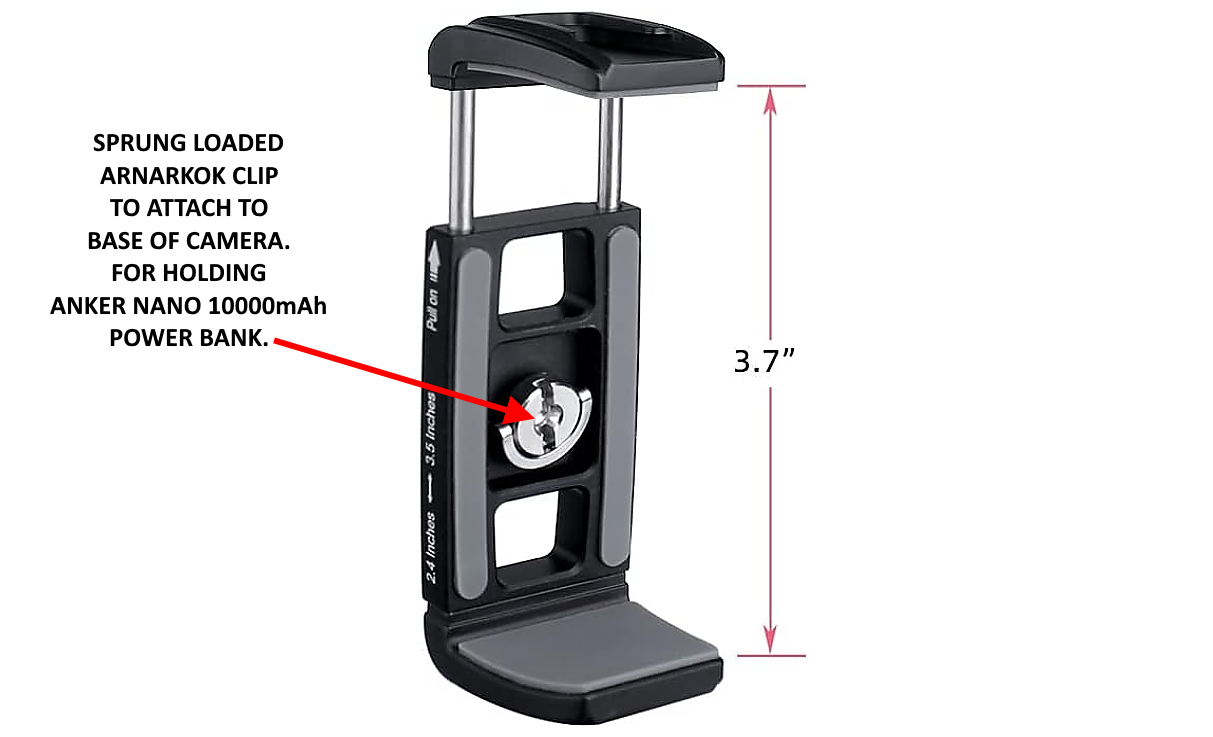

11.PANASONIC DMW-DCC18 USB BATTERY COUPLER	11.ARNARKOK CLAMP TO UNDERSIDE OF CAMERA
12.NEEWER SSD CLAMP + ALLEN KEY	12.PANASONIC BLK22 BATTERY IN CAMERA
13.SAMSUNG T7 SHIELD 2TB USB DRIVE	13.SONY TOUGH 128 V90 SDXC CARD (SF-G128T)
14.USB LEAD (SHORT)

PRODUCTION D.A.SMITH OCTOBER 2026
